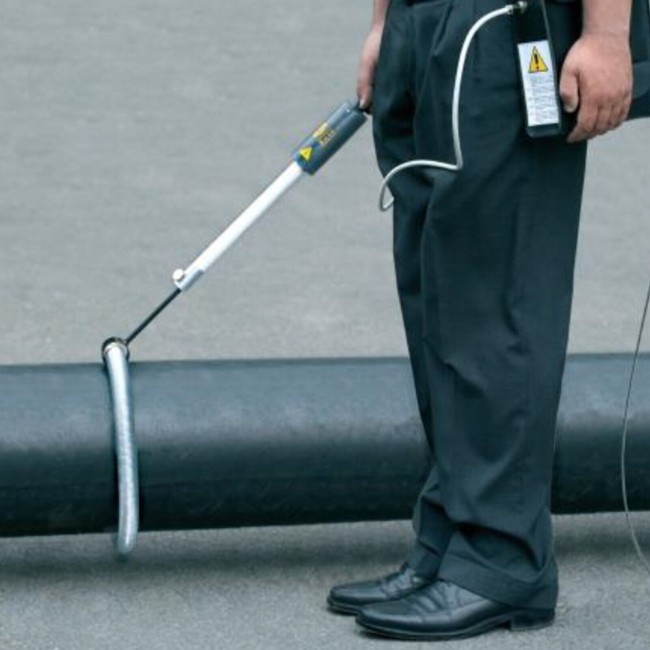

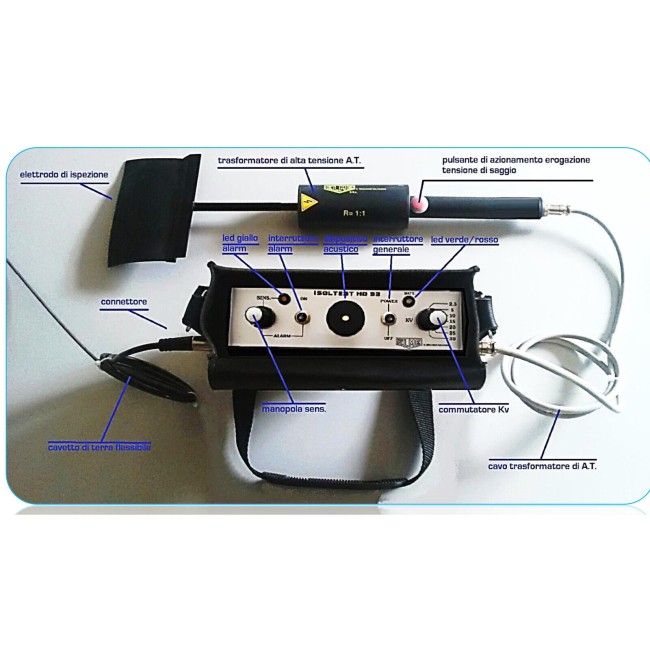

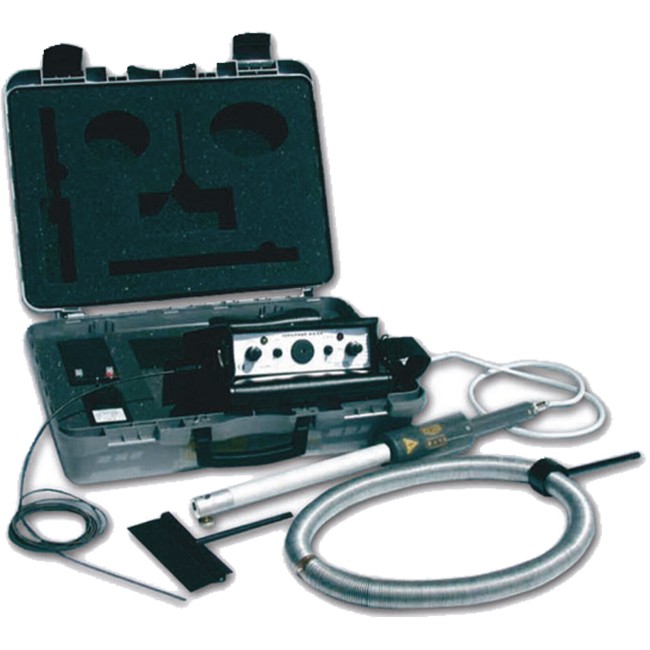

The ISOLTEST HD87 is made up of a basic portable unit which can generate a pulsating voltage of a variable range that can test coatings at different thicknesses and give, via an acoustic indicator, an indication of the status of the coating.
TECHNICAL FEATURES

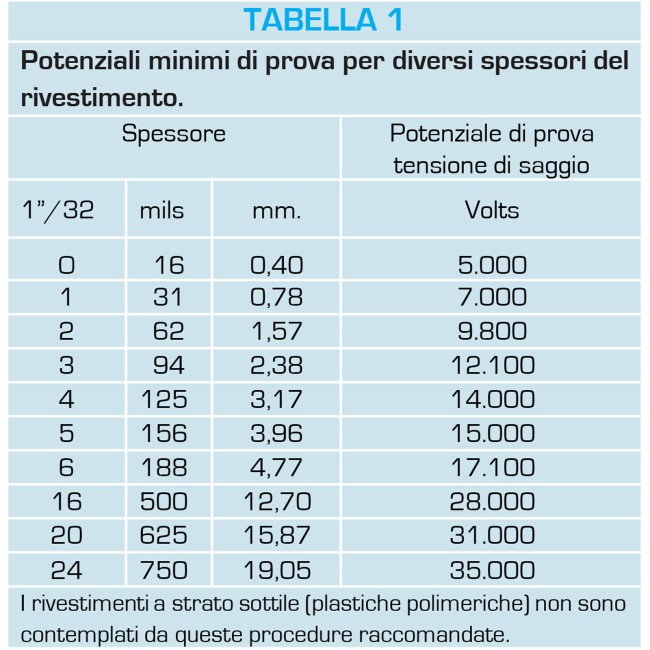

Test voltage: 2.5-5-10-15-20-25-30 Kv.
Shape of wave: pulsating voltage with sharp wave front lasting around II microseconds. Repetition frequency: around 25 Hz.
Indication of insulation status: acoustic.
Power supply: rechargeable, lead hermetic accumulator 12V capacity 3 Ah.
No maintenance required.
Absorption: around 500mA (at maximum output voltage).
Recharging time: 10 HOURS.
Weight: 2.5 Kg.
Dimensions: 20x8x26 cm.

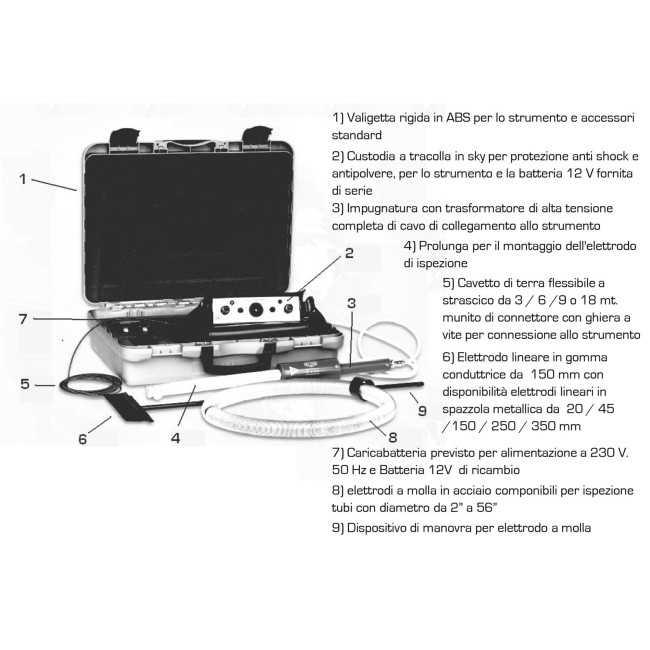

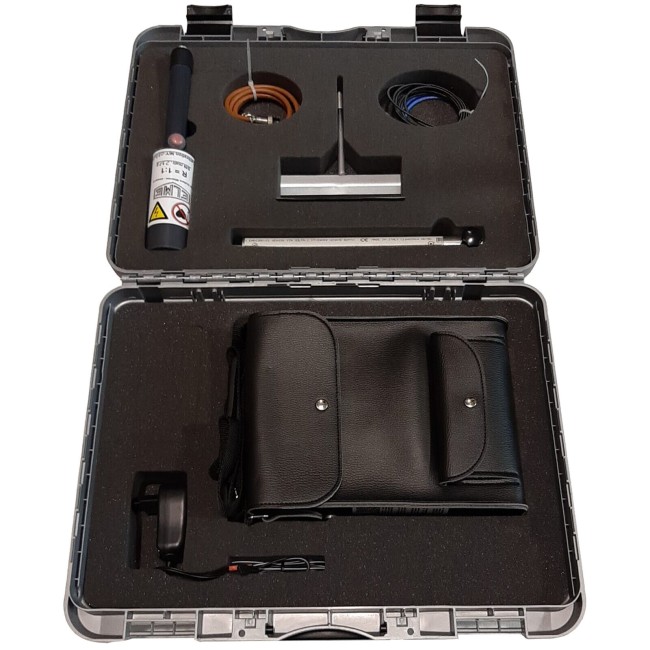

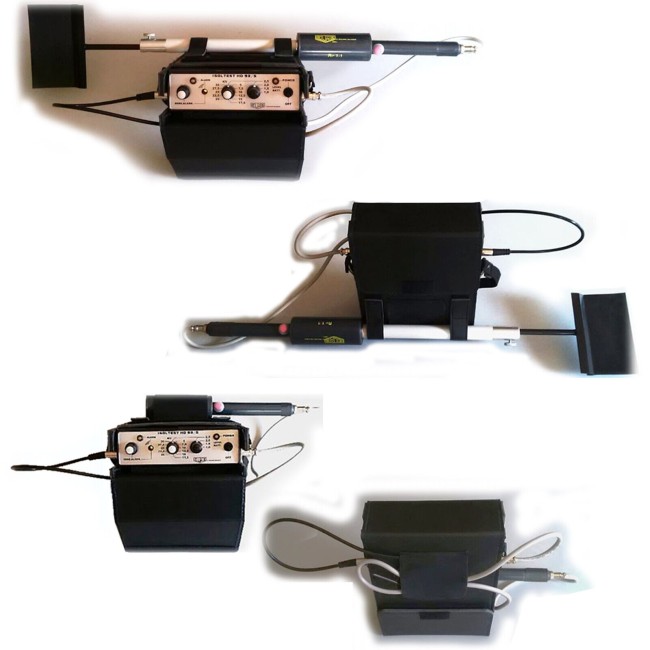

Power is supplied by the lead hermetic accumulator which is incorporated in the simulated leather shoulder bag which holds the basic unit: the battery charges is separate to avoid overloading the bag and supplied individually.
