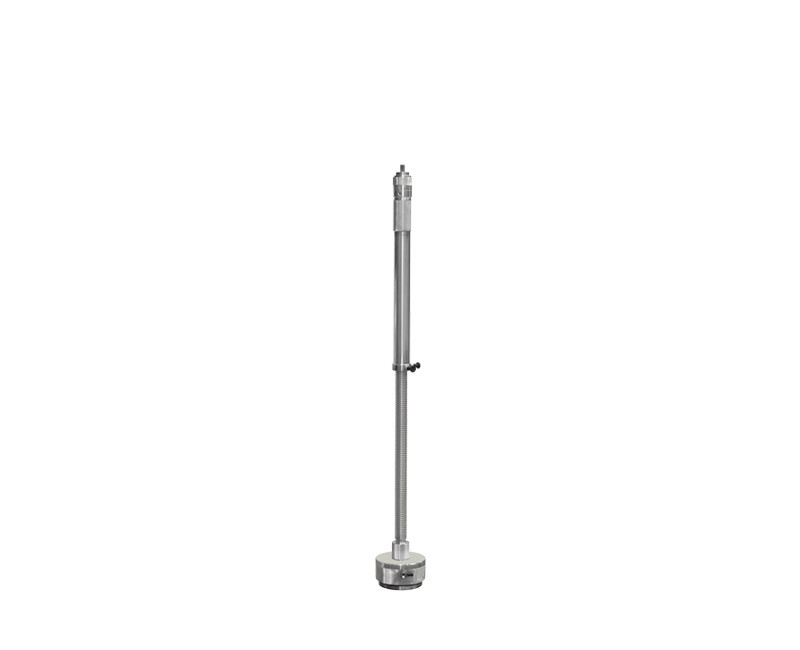

Drilling machine for DN 1" to 6" on steel, cast iron, polyethylene and cement/asbestos pipes with pressure up to 40 bar.
This model is suitable for 1"-6" drilling with pressure up to 40 bar through long body ball valves (up to 533 mm). Adapters are available with PN 16 - PN 25 - ASA 150 - ASA 300 flange, complete with o-ring seals. Supplied with metal box, ratchet and wrenches, HSS saws mod. TA up to 3' and mod. TAD from 4' to 6 ' for size-to-size drilling of steel and cast iron pipes.
PIPE DRILLING MACHINES art. 530
| Ø |
WEIGHT
(kg) |
| 1/2” |
12,8
|
3/4”
|
12,8
|
1”
| 13
|
1”1/4
| 13
|
1”1/2
| 13
|
2”
| 13,3
|
2”1/2
| 14
|
3”
| 14,3
|
4”
| 16,2
|
5”
| 17
|
6”
| 19
|
PIPE DRILLING DIAMETERS (mm)
Ø O.D.
|
Ø BORE
|
21,3
|
14
|
26,9
|
17
|
33,7
| 21
|
42,4
| 29
|
48,3
| 37
|
60,3
| 46
|
76,1
| 60
|
88,9
| 70
|
114,3
| 98
|
139,7
| 121
|
168,3
| 140
|
