Drilling machine for DN 3/4" to 2" on steel, cast iron, polyethylene and cement/asbestos pipes with pressure up to 12 bar.

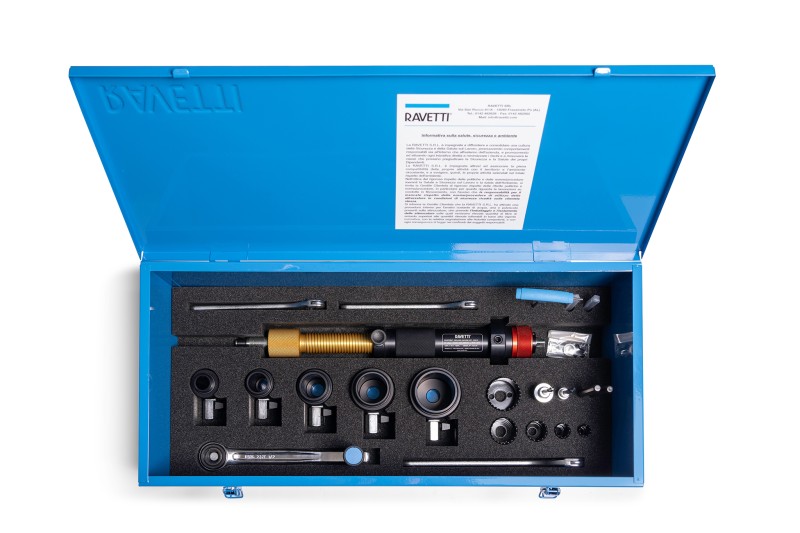

The art. 230 though of compact dimensions offers excellent performance being equipped with the releasing device of the upper part of the machine and, important feature, to be used in situations in which a long drilling traverse is required. Supplied with metal box, ratchet and wrenches, HSS hole saws AV type for steel and cast iron.
PIPE DRILLING MACHINES art. 230/19
| Ø |
WEIGHT
(kg) |
| 1/2” |
3,5 |
3/4”
|
3,7
|
1”
| 3,7
|
1”1/4
| 3,8
|
1”1/2
| 4,2
|
2”
| 4,5
|
PIPE DRILLING DIAMETERS (mm)
Ø O.D.
|
Ø BORE
|
21,3
|
14
|
26,9
|
17
|
33,7
| 21
|
42,4
| 29
|
48,3
| 37
|
60,3
| 46
|
