Drilling Machine art. 235

Drilling Machine art. 235

The Foratubi Ravetti® are characterized by:

  • Lead screw and threaded body
  • Manual feed
  • Manual rotation with the possibility of pneumatic or hydraulic motorization (see the motors section)
  • Working traverse end locked by safety pins
  • Threaded valve connection
  • Optional adaptors available for valves with PN or ANSI flanges
  • Optional thin thread version for drilling up to 64bar for models 325 – 530 – 330/1000
  • Optional stainless steel or aluminum alloy construction versions
For further information, our sales department is always available at +39 0142 482626 or by e-mail: info@ravetti.com

Drilling machine for DN 3/4" to 2" on steel, cast iron, polyethylene and cement/asbestos pipes with pressure up to 12 bar.

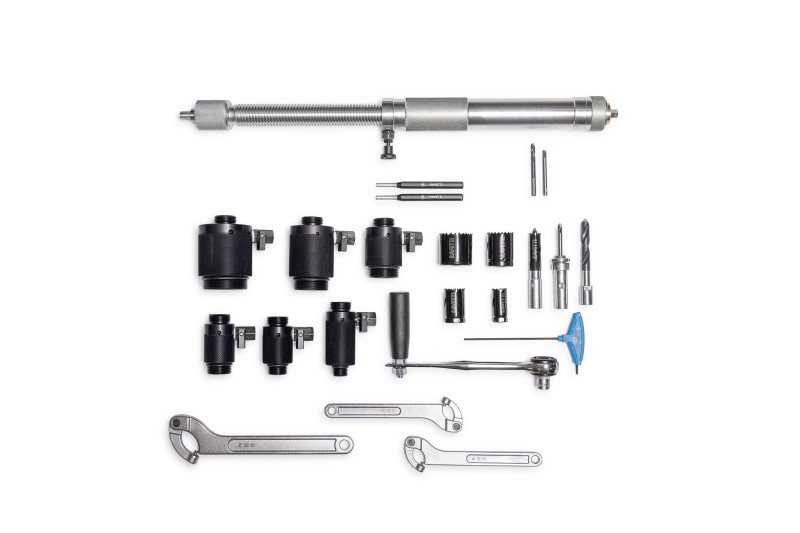

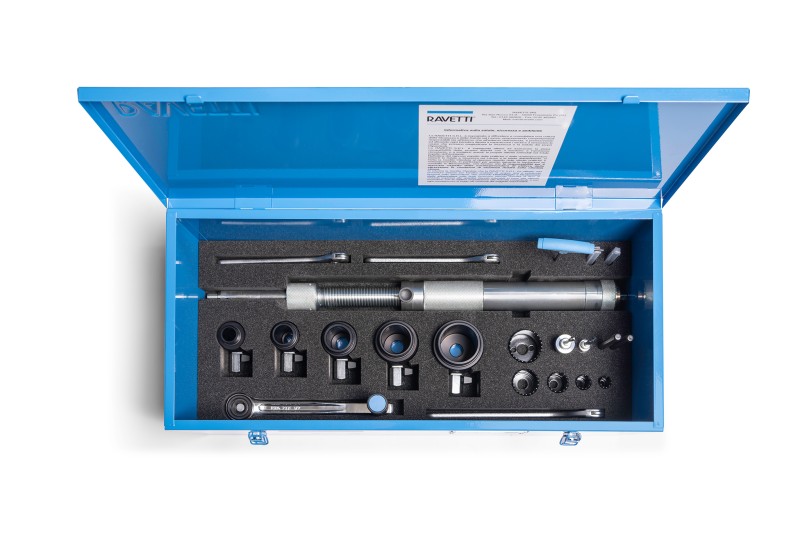

This machine is similar to the art. 230 with a longer traverse -25 cm - for those applications where higher pressures don't allow the use of extensions. Supplied complete with a strong steel box, ratchet and wrenches, HSS hole saw cutters A type for steel, cast iron and ductile.

PIPE DRILLING MACHINES art. 235

Ø WEIGHT
(kg)
1/2” 4,8
3/4”
 5
1”
5
1”1/4
5,2
1”1/2
5,5
2”
6


PIPE DRILLING DIAMETERS (mm)

Ø O.D.
 Ø BORE
21,3
 14
26,9
 17
33,7
21
42,4
29
48,3
37
60,3
46
COMPOSIZIONE_ATTREZZATURA_FORATUBI_ART.235_3_4_-_2.pdf M.F._art._230;_230-19;_235_M.I._IT_rel._04.pdf
